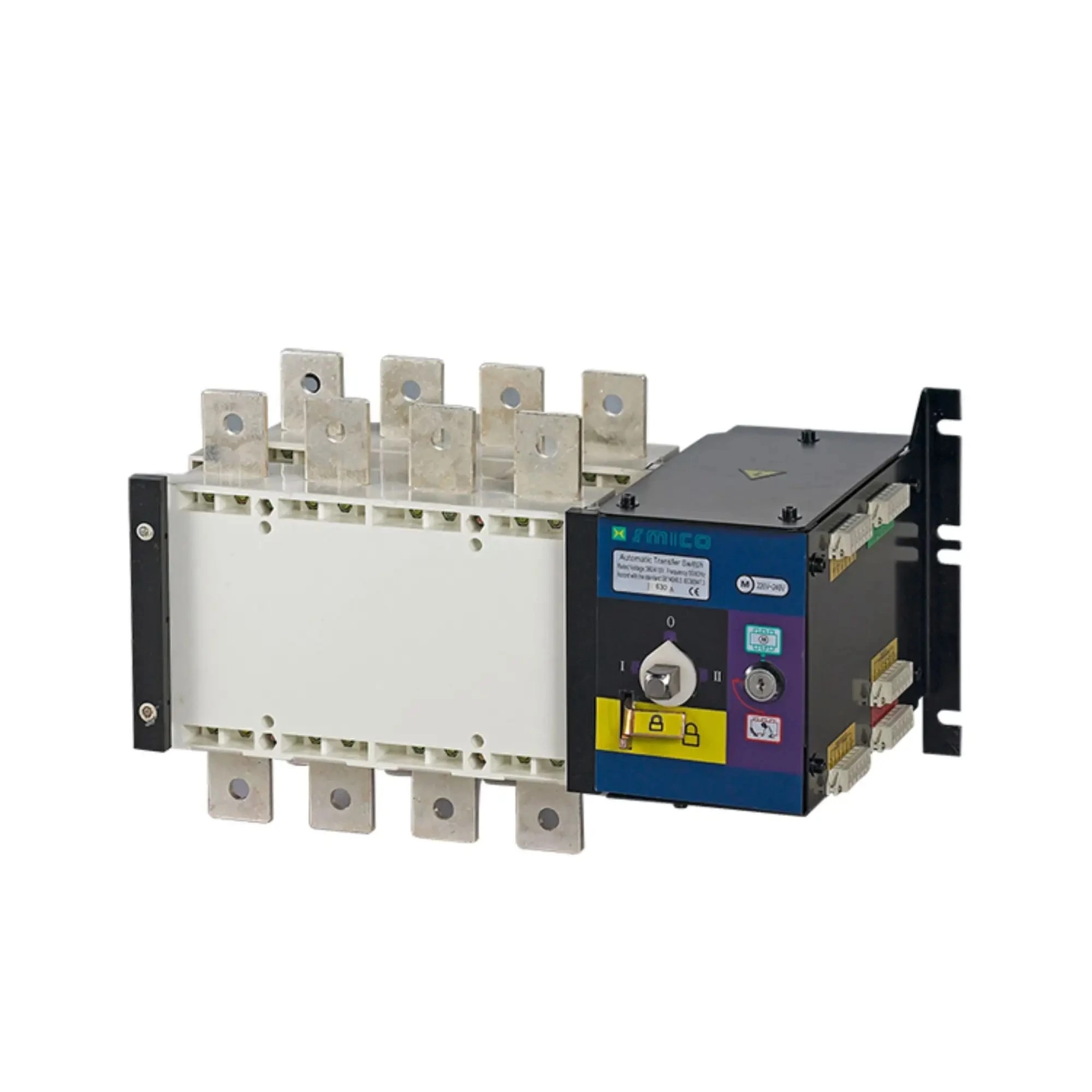

Compact Iec Standard Oem Available 630a Automatic Disconnector Switch
Brief introduction
The ATS switch integrates switch and logic control, thus it is not necessary to provide external controller. It has multiple function totally, including voltage detection, frequency detection, communication interface, electrical and mechanical interlocking and etc to support remote control and emergency control.
Operation condition
Altitude not exceeding 2000m
Ambient temperature between -5℃-40℃；Relative humidity no more than 95%
No explosive hazard
No extreme weather

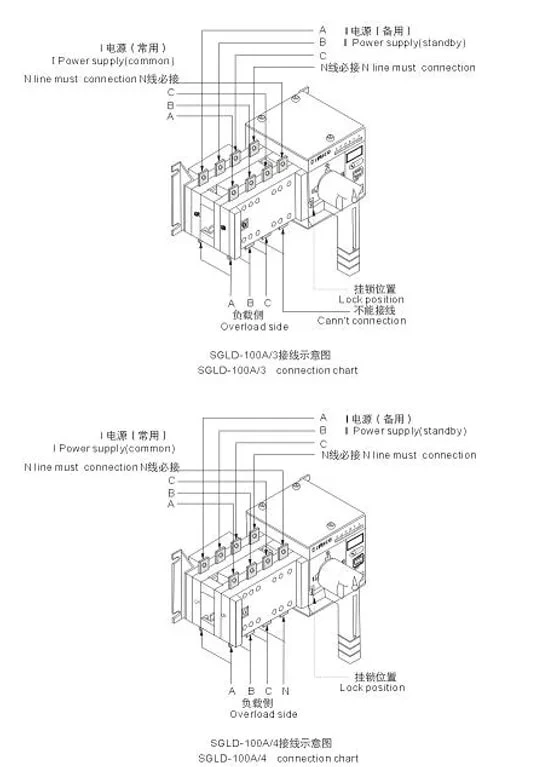

Connection Instruction
Technical data
| Conventional thermal current (Ith) | 630A |
| Rated impulse withstand voltage | 500V |
| Dielectric strength | 5000V |
| Rated breaking capability (A Rms) | 3200A |
| Rated making capability (A Rms) | 4000A |
| Rated short-current making capability (Icm) | 30A |
| Mechanical durability | 4000 |
| Electric durability | 500 |
| Moment of operation(Nm) | 45 |
| Number of poles | 3P/4P |
