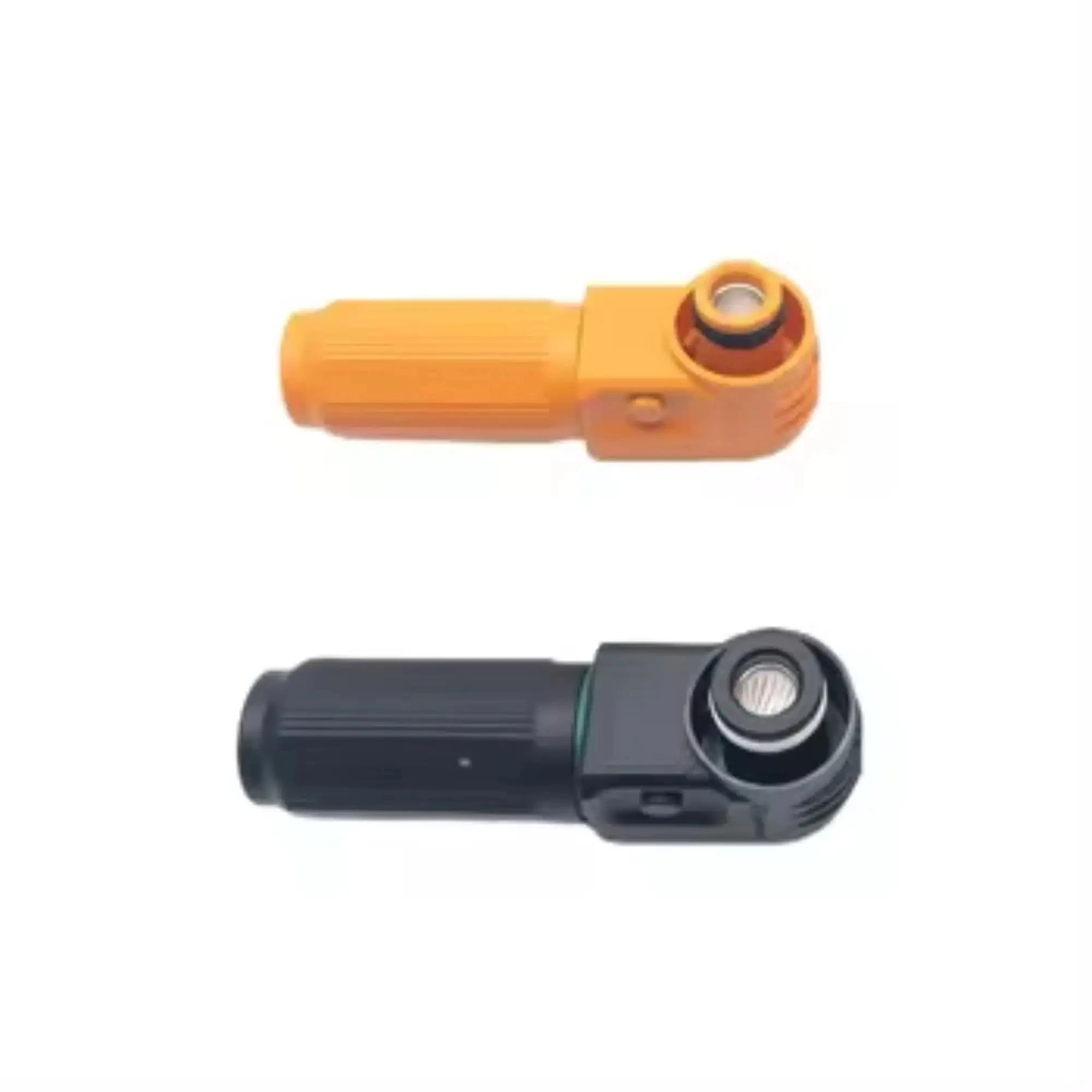

150a Color Mechanical Coded Quick Plug Charging Station Energy Battery Connector
Basic information
Rated voltage: 1500V
Rated current: 150A
Number of pole: 1 pole
Cross section of wire: 35mm²
Technical parameters
| Insertion force | 100N MAX |
| Withdrawal force | ＞10N |
| Contact resistance | ＜0.5mΩ |
| Degree of pollution | 3 |
| Insulation resistance | ＞5000mΩ |
| Color | Orange/Black/Red |
| Material of contact | Copper alloy |
| Material of housing | PA |
| Material of seal | Silicon |
| Insertion cycles | 100 |
| Connection method | Crimp |
| Flammability | V0 |
| Ambient temperature | -40-125℃ |
| Altitude | 2000m |
