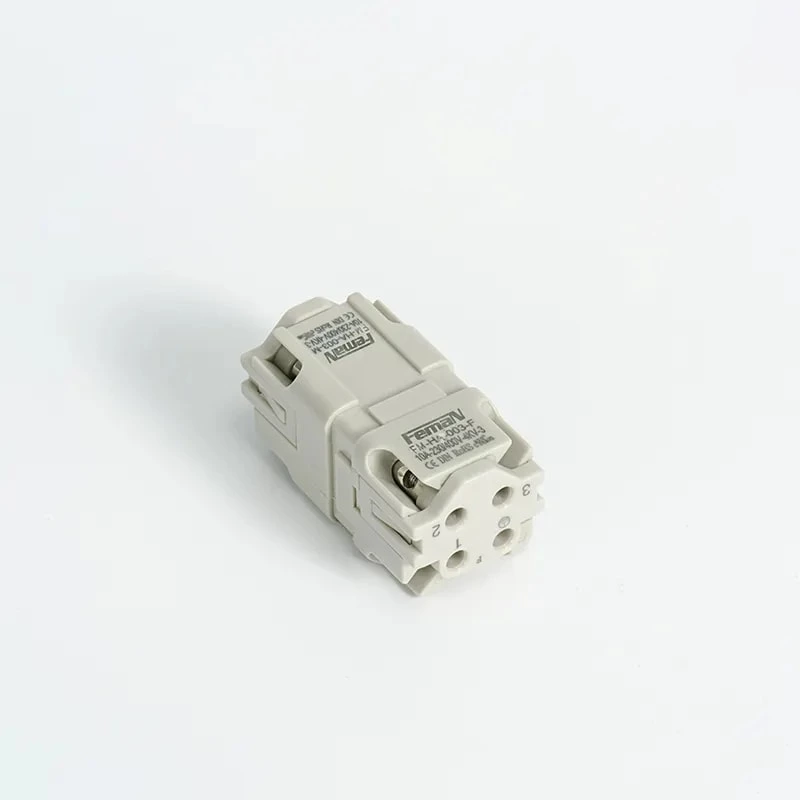

3 Pin Heavy Duty Connectors Male Female Butt
Feature & Benefit
Stable signal and power connection
High current carrying capacity
Multipin specification choices
Well performance under extreme environment
Standards compliance with CE, UL, RoHS, DMT
Heavy-duty connector is specially designed for rigorous environment and applicable to industrial automation equipment manufacturing, industrial system connection as well as information and control technology. Compared with traditional connection type, heavy-duty connector can save 20-30% of installation cost for machining center, increase production efficiency and reduce error ratio of wiring.
Applications:
Rail transit/Railway industry
Energy/Electric power
Escalator industry
Energy/Wind power
Engineering automation
Robot industry
Specifications:
| HDC-FM-HA-003-F | |
| Working current | 10A |
| Working voltage | 230/400V |
| Rated impulse voltage | 4KV |
| Pollution degree | 3 |
| Insulation resistance | 10^10Ω |
| Material | Polycarbonate |
| UL94/Flammability acc.to | V0 |
| Limiting temperatures | -40℃-+125℃ |
| Mechanical working life | ≥500 |
| Woking voltage acc.to UL/CSA | 600V |
| Contacts | |
| Material | Copper alloy |
| Surface | Silver plated |
| Contact resistance | ≦1mΩ |
| Terminal | Screw terminal |
| Wire gauge | 1.0-2.5mm²（AWG18-14） |
| Screw terminal tightening | (HA-003/004)0.25Nm |
