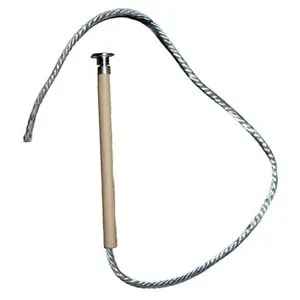

11-36kv High Voltage K Type Expulsion Fuse Link

Expulsion Fuse Link:

There are two types of fuse links: "K" type and "T" type. According to IEC-282 standard, they can be divided into ordinary type, universal type and threaded type. The fusing speed of "K" type fuse link is 6-8, and the fusing speed of "T" type fuse link is 10-13. These two types of fuse links are widely used to disconnect 11-36kV level fuse links.

Technical specification:

• Expulsion fuse link for fuse cutout
• Rated voltage: 11KV-36KV
• Rated current: 1A-200A
• Rated of melting: Class K & Class T

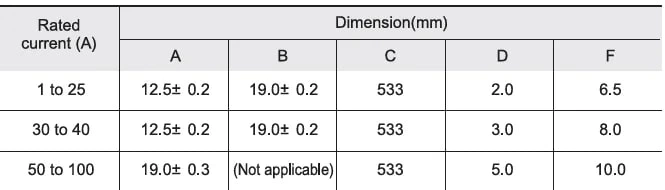

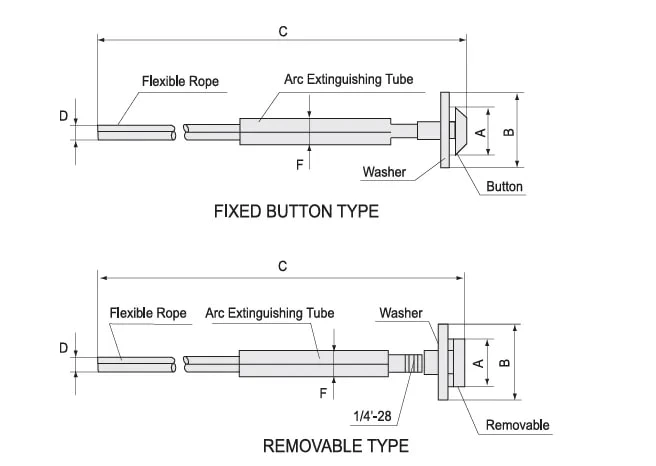

Outline Dimension:
